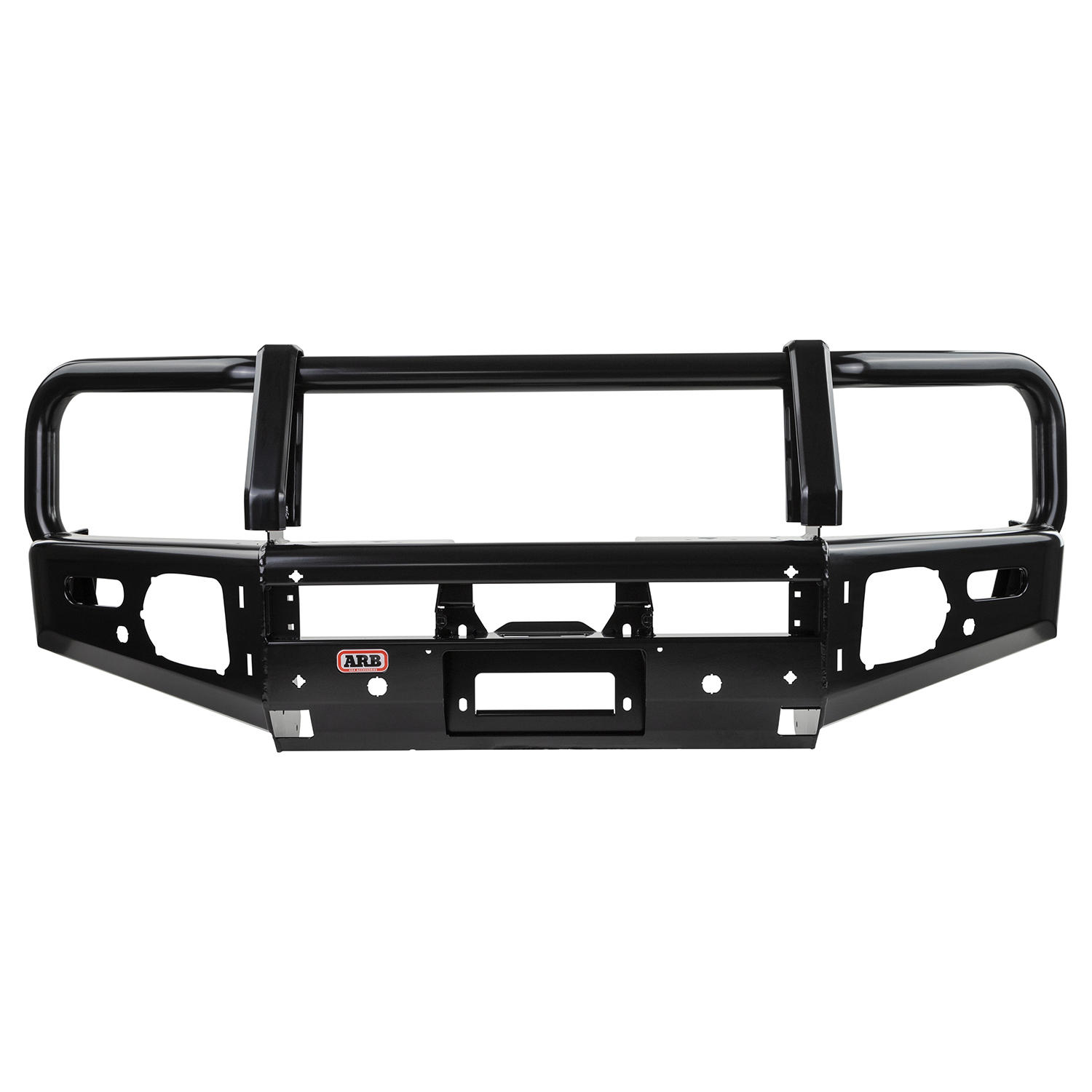

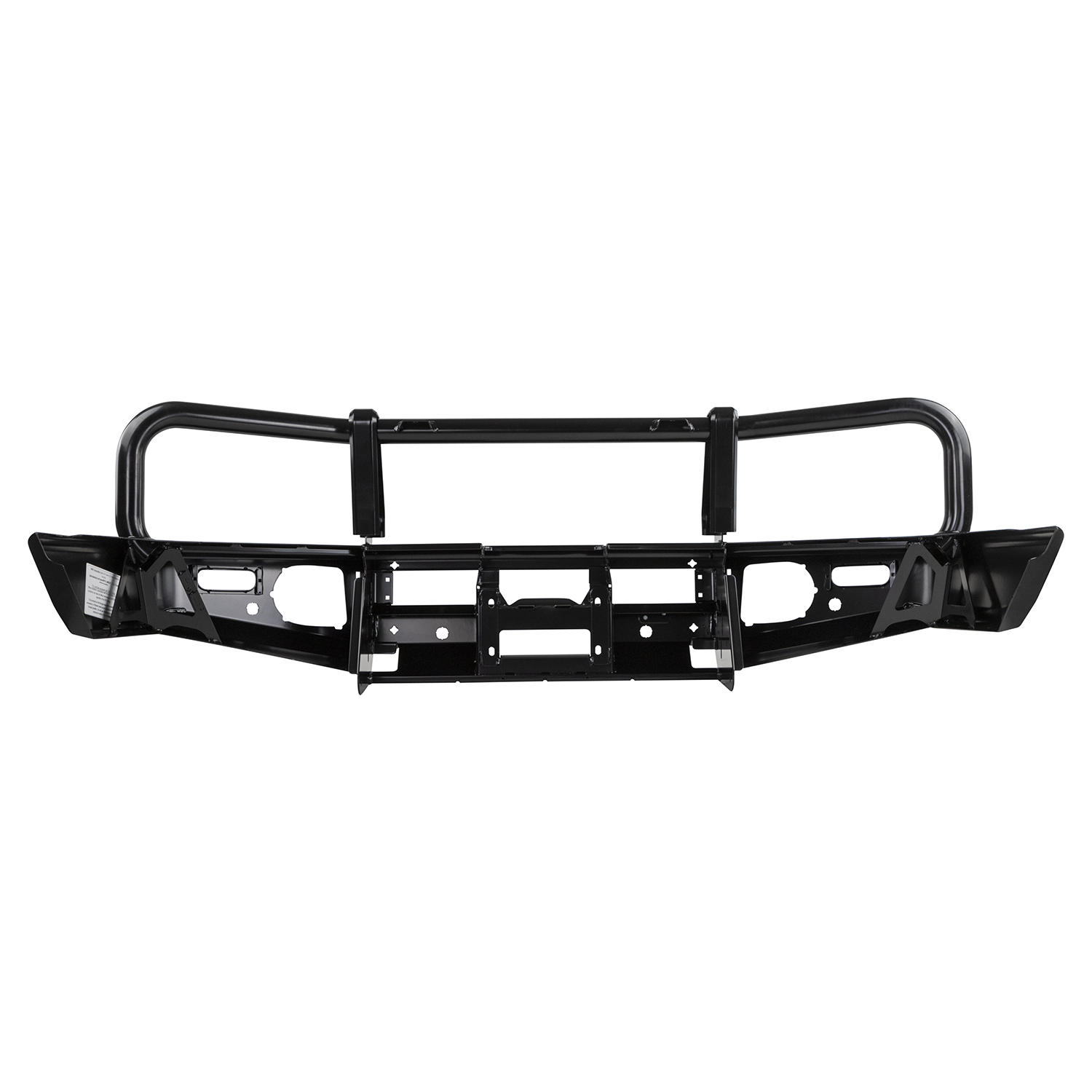

ARB Summit Bull Bar Landcruiser 200 (GX and GXL) 2015 – 2021
The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.
Available for GX and GXL 200 Series models, Summit bars are winch compatible and provide next generation protection and styling for your vehicle. Laser cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.
Supplied in a durable black powdercoat finish, colour coding is available as an option for a fully integrated look.
PLEASE NOTE: Two separate Summit bar designs are available to suit the GX, GXL and VX/Sahara models respectively. The matched designs ensure the Landcruiser’s technological and safety features are retained.
Note: Bar shown with optional fog light kit.
FEATURES
Vehicle specific design to complement the 200 Series GX and GXL 2015 onwards
Durable steel construction for maximum protection
Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
30mm edge radius on wings and centre section
Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts and hardware
Split pan design for maximum strength and airflow
Two piece grill design for split pan
Extensive under protection panels on centre and either side
60.3mm outer tubing and centre cross bar
Formed cover straps
Pressed top pan and winch cover panel
Combination style bar to suit both winch and non winch applications
Twin Hi-Lift jack points located below each buffer for optimum strength
Durable two piece buffers including cover strap intersection caps
Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 12,000lb
Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights
Provision for optional ARB Fog Light kit
Includes ARB’s LED, indicator & clearance light
Two aerial brackets located on the top of the centre frame
Zinc rich primer for additional corrosion resistance
Finished in a hard wearing satin black powder coat with the added option of colour coding to individual vehicles
